Installing and Starting Adobe Experience Manager as a Windows Service



  1. Your need to login as Administrator or start/run these steps using Run As Administrator command prompt.
  2. If you don’t follow the above instruction, you will get Access denied error while completing steps.


  1. Open the crx-quickstart\opt\helpers\instsrv.bat file in a text editor.
  2. If you are configuring a 64-bit Windows server, replace all instances of prunsrv with one of the following commands, according to your operating system:
    This command invokes the appropriate script that starts the Windows service daemon in 64-bit Java instead of 32-bit Java.
  3. To prevent the process from forking into more than one process, increase the maximum heap size and the PermGen JVM parameters. Locate the set jvm_options command and set the value as follows:

    set jvm_options=-XX:MaxPermSize=256M;-Xmx1792m

  4. Open Command Prompt, change the current directory to the crx-quickstart/opt/helpers folder of the AEM installation, and enter the following command to create the service:

    instsrv.bat cq5

    To verify that the service is created, open Services in the Administrative Tools control panel or type start services.msc in Command Prompt. The cq5 service appears in the list.

  5. Start the service by doing one of the following:
    1. In the Services control panel, click cq5 and click Start.
    2. In the command line, type net start cq5

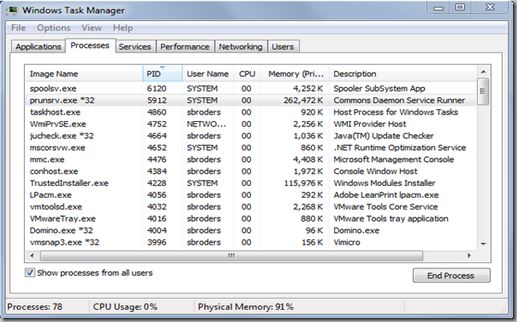

  6. Windows indicates that the service is running. AEM starts and the prunsrv executable appears in Task Manager.


  7. Note: The property values in the instsrv.bat file are used when creating the Windows service. If you edit the property values in instsrv.bat, you must uninstall and then re-install the service.

  8. To uninstall the service, either click Stop in the Services control panel or in the command line, navigate to the folder and type instsrv.bat -uninstall cq5. The service gets removed from the list in the Services control panel or from the list in the command line when you type net start.
